TECHNICAL DETAILS

• IRLP v3.0 board mounted and pre-wired

• 667 Mhz Fanless Mini-ITX board with customized BIOS firmware

• 256 Meg of Ram

• 128 Meg IDE Flash Drive (not compact flash)

• Compact case (uses one small and quiet 12V fan)
  - 8.25" x 2.6" x 10.8" or 210mm x 65mm x 275mm
  - About same size as a ream of 8.5" x 11" paper

FEATURES

• PHP Enabled webserver
  - Runs IRLP WEB ADMIN system
  - Easy to add on additional PHP scripts to enhance system

• No hard drive
  - Boots from flash device
  - Runs quickly in RAM drive
  - OS not succeptable to power fluctuations
  - Flash card is easily updatable
  - Reduced noise
  - Reduced power consumption

• Linux pre-installed
  - Node number already assigned and tested (new or existing)
  - All hardware already pre-configured

• RS232 serial port and minicom installed
  - Allows direct interface to controller at repeater site
  - Serial port can also be used as a serial console (no monitor required)

• All wiring internal to case
  - No external parallel port cable
  - No external audio jack wiring
  - All interfacing to radio through a single DB-9 connector

• 12 volt operation (multi voltage AC adapter included**)
  - Good for low power consumtion - 14 watts average usage
  - Single power supply for radio/repeater and node computer
  ** Note that supply must be less that 13V average
  ** Special power supplies for higher voltage (13.8V) upon request

• Common used IRLP scripts and features already installed:
  - EchoIRLP
  - IRLP Controller
  - IRLP Web Admin
  - Saytime/date scripts
  - Star69
  - Automated CW ID

• Simple configuration script turns on/off certain features easily

PRICING

• Complete unit: wired, built, and tested $699 US

• Pricing Options:

  - 1RU 19" rack case (+ $170)
    - Only 10" deep, 1 rack unit high
    - Lightweight aluminum
    - Requires special power supply option (+$60) if run greater than 13V

  - Fanless compact case (+ $110)
    - 8.2" x 2.1" x 9.8" or 210mm x 50mm x 250mm
    - Requires IRLP board to be included due to modifications for reduced size
    - Ask about availability before ordering

  - "TV OUT" option (+ $30)
    - Allows you to use TV with "video in" as monitor
    - Handy for travellers who dont have access to a monitor
    - ALSO has standard VGA connector

  - "13.8 Volt DC Input" option (+ $60)
    - Allows any case to run from standard 13.8V power supply
    - Input voltage range from 6V to 24V DC
    - Perfect for being powered from a vehicle
    - Includes 100-240VAC-to-12VDC converter

  ** Canadian orders are subject to 5% GST.
  ** British Columbia orders are subject to 7% PST.

SHIPPING

• Canada Post Shipping from Vancouver - Approx 10 lbs
  - ~7 Day Ground to USA or Canada - $25
  - ~7 Day Air to International - $95


• From Order to Delivery Time 3-6 weeks
  - Pieces ordered and built in Canada
  - Variable delay due to "once a month" shipping
  - Rush orders available upon request

HOW TO ORDER

• Download the order form by right clicking on this link, and saving the file.

• Fill out the order form and attach it to an email to sales@irlp.net.


Someone will prepare a quote based on your location and order, and arrange for payment.

Photos

- Picture 1, Front right profile w/o drive/board chassis

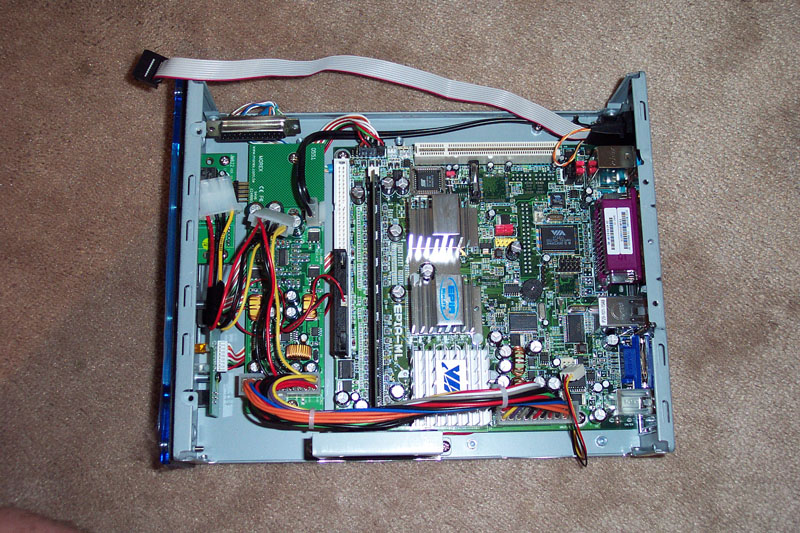

- Picture 2, Top w/o drive/board chassis, note IDE flash drive
- Picture 3, Left side w/o drive/board chassis
- Picture 4, Right side w/o drive/board chassis
- Picture 5, IRLP Board closeup
- Picture 6, Right profile, drive/board chassis installed
- Picture 7, Left profile assembled

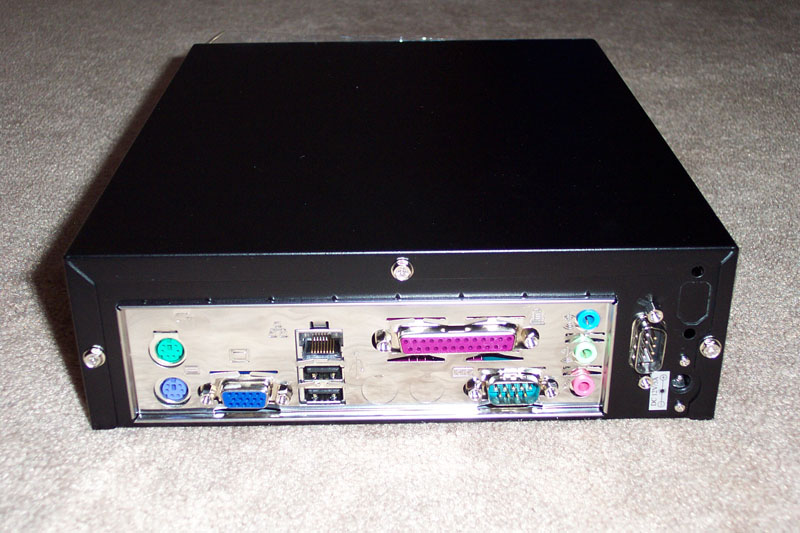

- Picture 8, Backside assembled
- Picture 9, Top assembled
- Picture 10, Unit on top of piece of 8.5 x 11 paper!

Documentation - **NEW**

Download the configuration and setup document here Embedded_Info.pdf. Also the irlp-embedded Yahoo group is a great source of information for new and experienced owners. Join up by clicking here.
